Accessories/Attachments that Come with Product in the Pack:
- IR remote control
- Power adapter
- USB cable
- User manual
- Mounting hardware
Specifications:
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8” SONY CMOS |
| Effective Pixels | 2.38 Mega Pixel |
| Focal Length | f=5.5-110mm |
| Field of View | 55.8° (Wide) – 3.2° (Tele) |

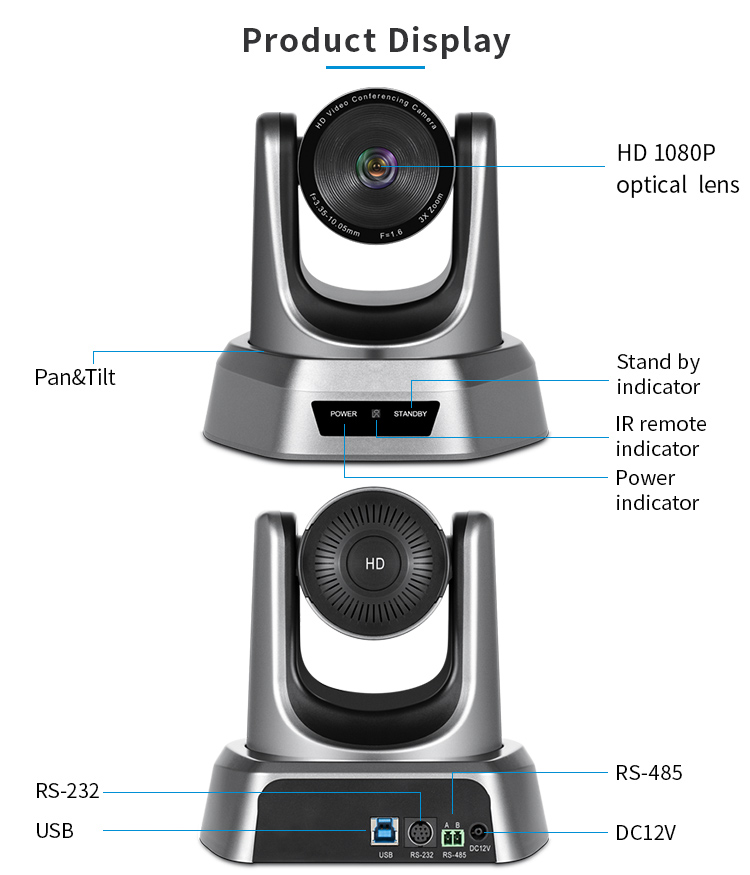

| Video Outputs | USB, HDMI, SDI, RJ45 LAN |
| Video Resolutions | 1080p@60/50/30/25fps |
| Gain Control | Auto/Manual |
| SNR | ≥50dB |
| Minimum Illumination | 0.5Lux at F2.0 |
| Control Interfaces | RS-232, RS-485 |
| Control Protocols | VISCA, PELCO-D, PELCO-P |

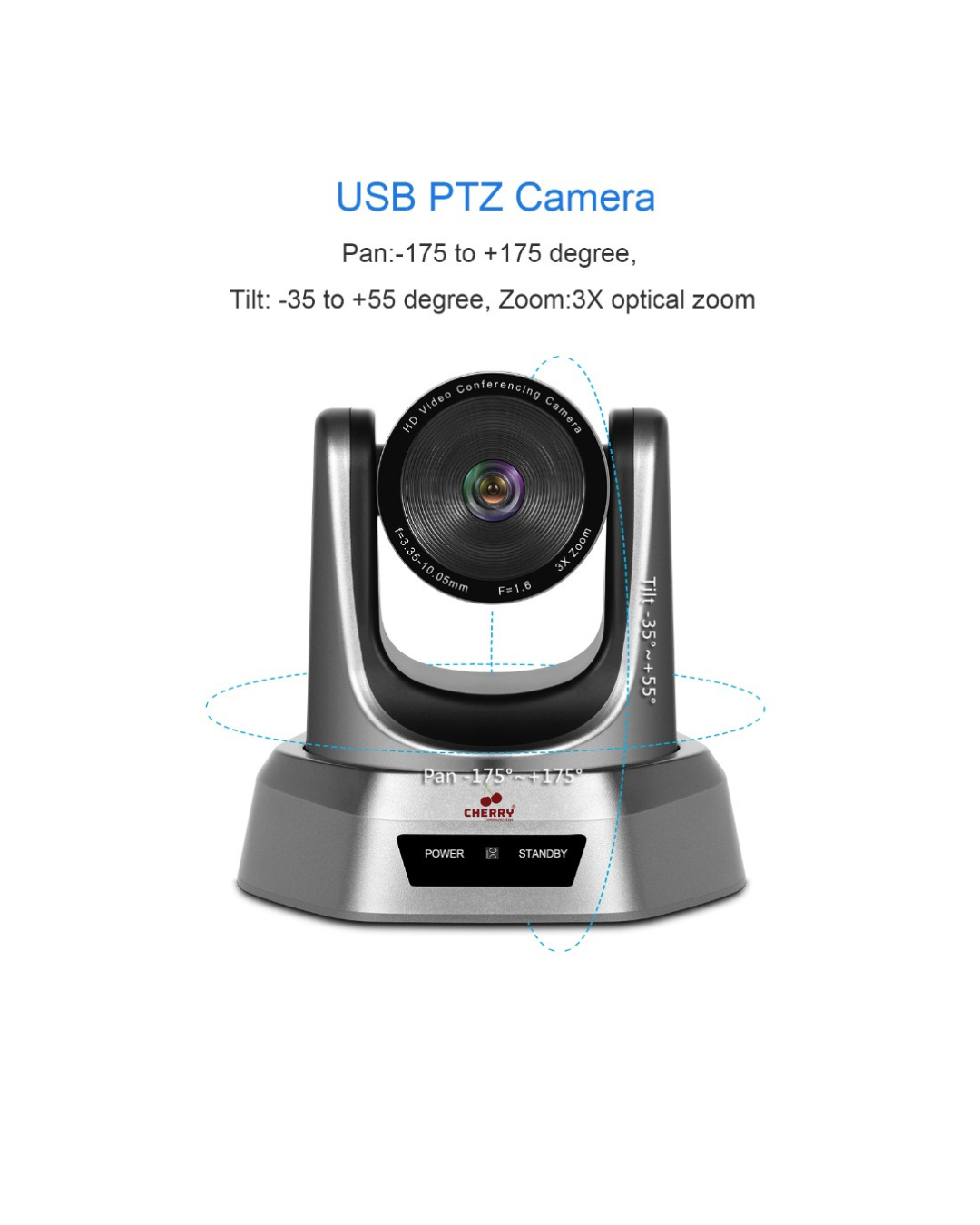

| Pan Range | ±175° |
| Tilt Range | -35° to +55° |
| Preset Positions | 9 via IR remote, 256 via RS-232 |
Additional Accessories Recommended to Enhance Performance/Results:
- Tripod for flexible camera placement
- External microphone for enhanced audio quality
- HDMI/SDI cables for extended connectivity options
- Ceiling or wall mount brackets for permanent installations
FAQs:
Q: Is the CH 2101 HD 20X OPTICAL ZOOM VIDEO CONFERENCING CAMERA compatible with Zoom and Skype?
A: Yes, the camera is compatible with most video conferencing platforms, including Zoom and Skype.
Q: Can the camera be mounted on the ceiling?
A: Yes, the camera supports ceiling mount, wall mount, and tripod mount options.
Q: Does the camera support low-light environments?
A: Yes, it has a minimum illumination of 0.5Lux at F2.0, making it suitable for low-light conditions.
Q: How many preset positions can be configured?
A: You can set up to 9 presets via the IR remote and up to 256 presets via RS-232 control.

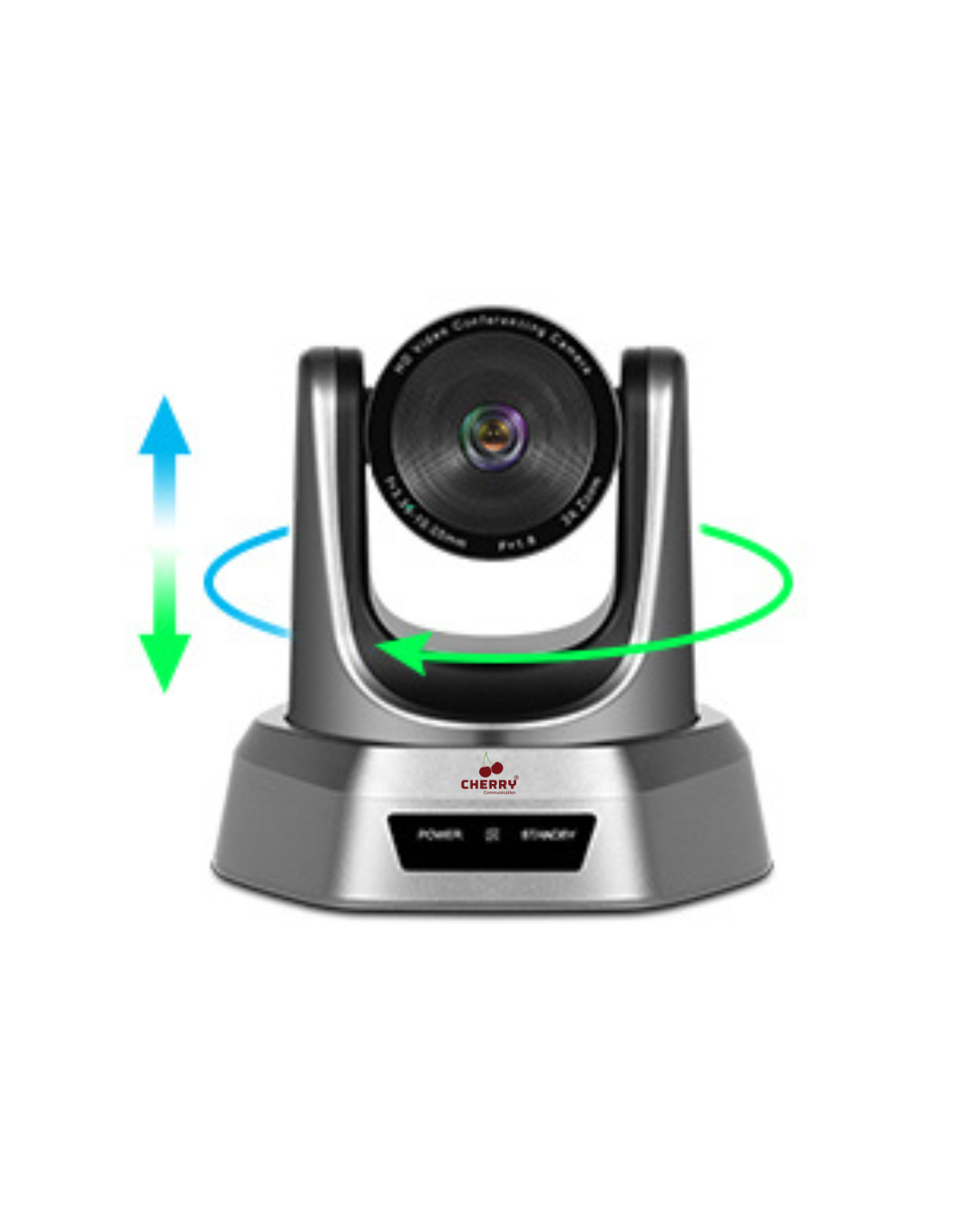

Q: What is the pan and tilt range of the camera?
A: The camera has a pan range of ±175° and a tilt range of -35° to +55°
